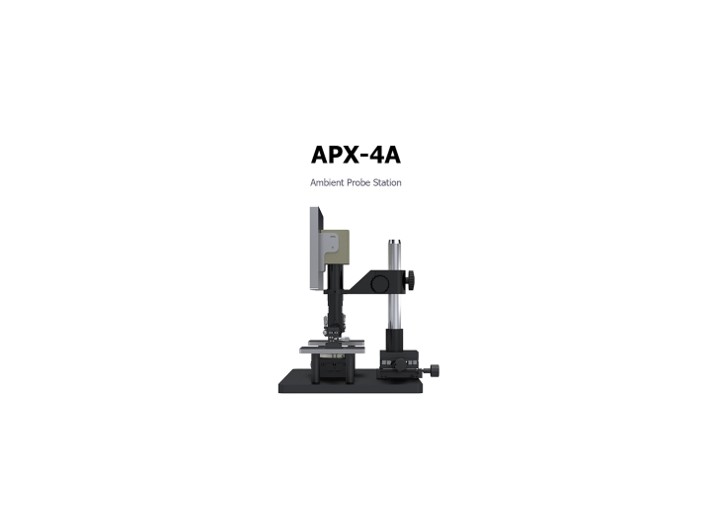

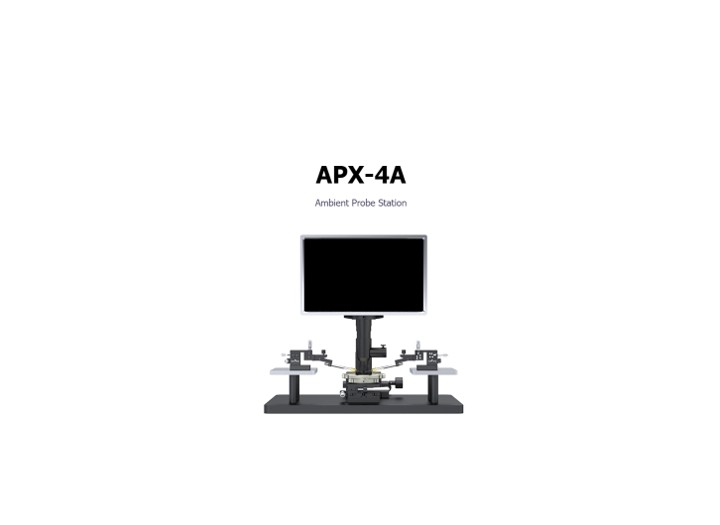

프로브스테이션 APX-4A Ambient Probe station
| 제조사 | Wit |
|---|---|
| Main Frame | 4 inch Main chuck/ Nickel plated vacuum chuck |
| Device Transport | Travel Range X,Y - 25mm x 25mm |
| Digital Microscope | Metallurgical( Zoom Lens 0.75 x 4.5x)/ Magnification( up to 225X) |
| CCD Camera | 6M Pixel, Full HD type / Monitor Capture & Recoding Card/ 13 |
| Micro-positioner | XYZ movement( 6mm x 6mm x 6mm), Resolution(5 um),Base option(Vacuum, Magnet), Tip Holder(TRX,BNC,SMA) |
| Probe Tip | Bending type(size 0.5 x 30mm)/Material( Tungsten) |
| Footprint | 480(W)x350(D)x400(H) mm |
목록으로 제품구입상담 렌탈상담하기
- PREVIOUSAPX-4B Ambient Probe Station
- NEXT다음상품이 없습니다.
본문
Detail view
Main Frame : 4 inch Main chuck/ Nickel plated vacuum chuck
Device Transport: Travel Range X,Y - 25mm x 25mm
Digital Microscope: Metallurgical( Zoom Lens 0.75 x 4.5x/ Magnification: up to 225X
CCD Camera: 6M Pixel, Full HD type / Monitor Capture & Recoding Card/ 13" LCD monitor
Micro-positioner: XYZ movement( 6mm x 6mm x 6mm), Resolution(5 um),Base option(Vacuum, Magnet), Tip Holder(TRX,BNC,SMA)
Specification
Option
