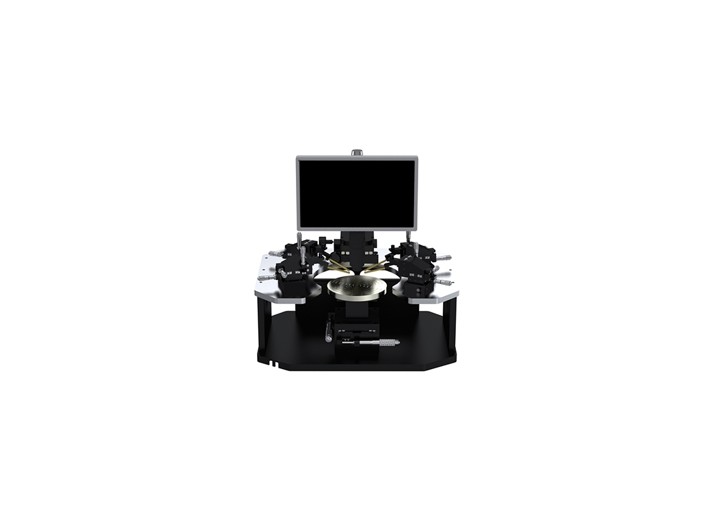

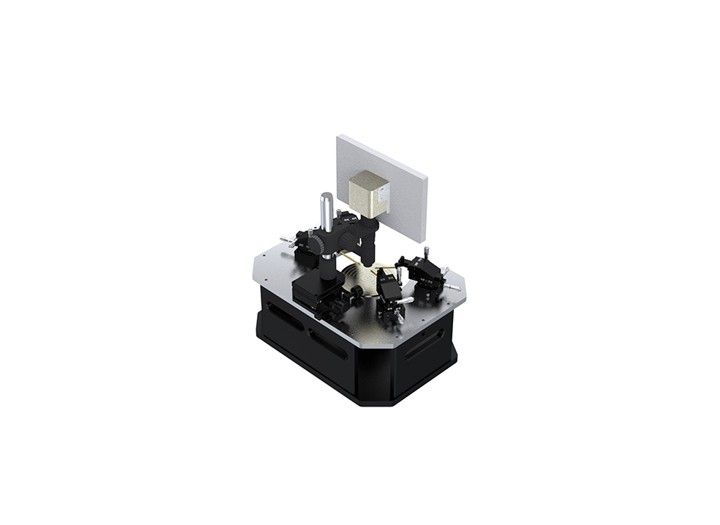

프로브스테이션 APX-6B Ambient Probe Station
| 제조사 | Wit |
|---|---|
| Main Frame | 6 inch Main chuck ( Nickel plated vacuum chuck), Device Transport ( Travel Range X,Y / 50mm x 50mm) |
| Digital Microscope | Netallurgical( Zoom Lens/0.75 x to 4.5 x), Magnification ( up to 225 x) |
| CCD Camera | 6M pixel, Full HD type, Monitor Capture & Recoding Card, 13 |
| Micro-positioner | XYZ movement( 13mm x 13mm x 13mm), Resolution(3 um), Base Option (Vacuum, Magnet), Tip Holder ( TRX, BNC, SMA) |
| Probe Tip | Bending Type ( Size 0.5 x 30mm), Material( Tungsten) |
| Footprint | 530(W)x400(D)x520(H) mm |
목록으로 제품구입상담 렌탈상담하기
본문
Detail view
Main Frame : 6 inch Main chuck ( Nickel plated vacuum chuck), Device Transport ( Travel Range X,Y / 50mm x 50mm)
Digital Microscope: Netallurgical( Zoom Lens/0.75 x to 4.5 x), Magnification ( up to 225 x)
CCD Camera: 6M pixel, Full HD type, Monitor Capture & Recoding Card, 13" LCD Monitor
Micro-positioner: XYZ movement( 13mm x 13mm x 13mm), Resolution(3 um), Base Option (Vacuum, Magnet), Tip Holder ( TRX, BNC, SMA)
Specification
Option
