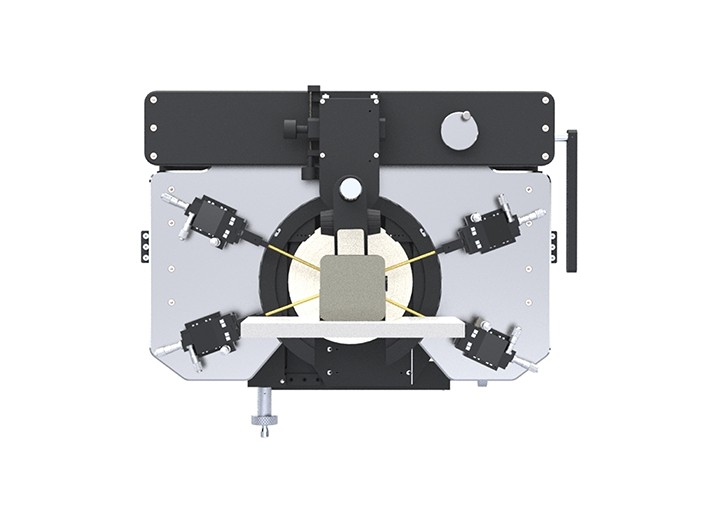

프로브스테이션 APX-8C Ambient Probe Station
제조사 | Wit |
---|---|
Main Frame | 8 inch Main chuck ( Nickel plated vacuum chuck), Device Transport ( Travel Range X,Y / 200mm x 200mm) |
Digital Microscope | Netallurgical( Zoom Lens/0.75 x to 4.5 x), Magnification ( up to 225 x) |
CCD Camera | 6M pixel, Full HD type, Monitor Capture & Recoding Card, 13 |
Micro-positioner | XYZ movement( 6mm x 6mm x 6mm), Resolution(5 um), Base Option (Vacuum, Magnet), Tip Holder ( TRX, BNC, SMA) |
Probe Tip | Bending Type ( Size 0.5 x 30mm), Material( Tungsten) |
Footprint | 730(W)x530(D)x600(H) mm |
목록으로 제품구입상담 렌탈상담하기
본문
Detail view
Main Frame
|
8 inch Main chuck ( Nickel plated vacuum chuck), Device Transport ( Travel Range X,Y / 200mm x 200mm) |
Digital Microscope
|
Netallurgical( Zoom Lens/0.75 x to 4.5 x), Magnification ( up to 225 x) |
CCD Camera
|
6M pixel, Full HD type, Monitor Capture & Recoding Card, 13" LCD Monitor |
Micro-positioner
|
XYZ movement( 6mm x 6mm x 6mm), Resolution(5 um), Base Option (Vacuum, Magnet), Tip Holder ( TRX, BNC, SMA) |
Probe Tip
|
Bending Type ( Size 0.5 x 30mm), Material( Tungsten) |
Footprint: 730(W)x530(D)x600(H) mm
Specification
Option
