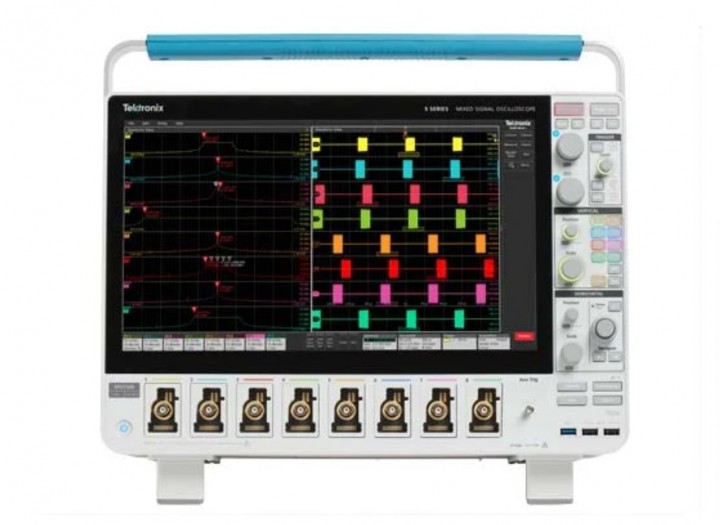

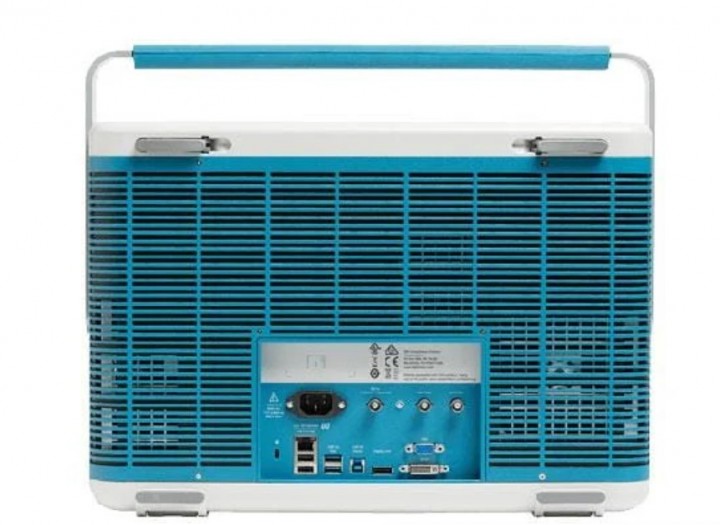

Input channels

• 4, 6, or 8 FlexChannel® inputs
• Each FlexChannel provides:
  • One analog signal that can be displayed as a waveform view, a spectral view, or both simultaneously
  • Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analog channels)

• 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradable)

Sample rate (all analog / digital channels)

• Real-time: 6.25 GS/s
• Interpolated: 500 GS/s

Record length (all analog / digital channels)

• 62.5 Mpoints standard
• 125, 250, 500 Mpoints, (optional)1

Waveform capture rate

• >500,000 waveforms/s

Vertical resolution

• 12-bit ADC
• Up to 16-bits in High Res mode

Standard trigger types

• Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)
• Auxiliary Trigger ≤5 VRMS, 50Ω, 250 MHz (>200 mVpp) (Edge Trigger only)

Standard analysis

• Cursors: Waveform, V Bars, H Bars, V&H Bars
• Measurements: 36
• Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
• FastFrameTM: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second

• Plots: Time Trend, Histogram, Spectrum and Phase Noise

• Math: Basic waveform arithmetic, FFT, and advanced equation editor
• Search: Search on any trigger criteria
• Jitter: TIE and Phase Noise

Optional analysis1

• Advanced Jitter and Eye Diagram Analysis
• User-defined filtering
• Advanced Spectrum View
• RF vs. Time traces, triggers, Spectrograms, and IQ capture
• Digital Power Management
• Mask/Limit Testing
• Inverters, Motors, and Drives
• LVDS Debug and Analysis
• PAM3 Analysis
• Advanced Power Measurements and Analysis
• Advanced Vector Signal Analysis (SignalVu-PC)

Optional serial bus trigger, decode, and analysis1

• I2C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, LIN, FlexRay, SENT, PSI5, CXPI, Automotive Ethernet,MIPI C-PHY,MIPI D-PHY, USB 2.0, eUSB2, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC`429, Spacewire, 8B/10B,NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO

Optional serial compliance test1

• Ethernet, USB 2.0, Automotive Ethernet, Industrial Ethernet

Optional memory analysis1

• DDR3 debug, analysis, and compliance test
