Detail view
Highlights

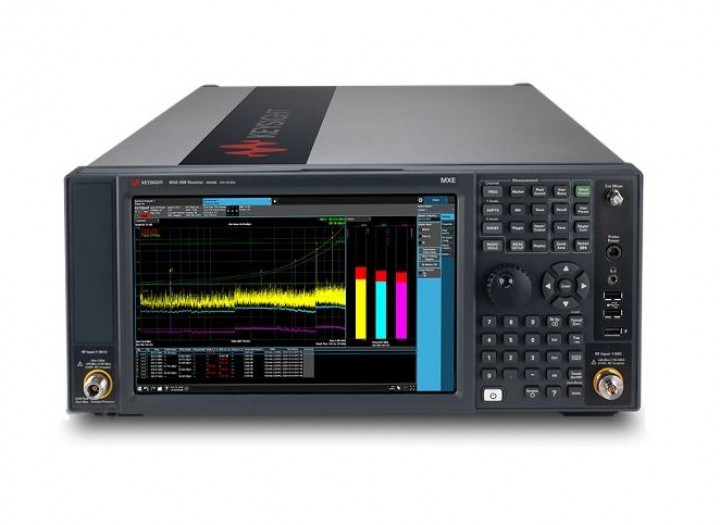

The Keysight N9038B is a standards-compliant MXE EMI test receiver and diagnostic signal analyzer built on an upgradeable platform. You choose the frequency coverage you need to fully test devices with outstanding accuracy and sensitivity across required ranges.
- Perform EMC tests with a standard-compliant receiver: CISPR 16-1-1 & MIL-STD-461
- Keep the test queue flowing with the accuracy, repeatability and reliability you need to test with confidence
- Reduce overall scan time with time domain scanning enabled by fast FFT scans
- Easily identify the frequencies of peak emissions prior to final measurement with monitor spectrum
- Get enhanced diagnostics using spectrum and real-time analysis, strip chart, markers, span zoom, zoom span, and spectrogram
- Evaluate emissions and identify suspect signals using EMC measurements through the front panel or remotely with software
Specification
대역폭 옵션:
10 standard, 25, 85, 160 MHz
DANL @1 GHz:
-174 dBm
주파수:
3 Hz to 44 GHz
주파수 선택:
3 Hz to 3.6, 8.4, 26.5, and 44 GHz
최대 분석 대역폭:
160 MHz
최대 리얼타임 대역폭:
160 MHz
성능 레벨:
◆◆◆◆◇◇
위상 노이즈 @1 GHz (10kHz 오프셋):
-114 dBc/Hz
TOI @1 GHz (3rd Order Intercept):
+15 dBm
Option
Application Software with Subscription
| N9068EM0E | Phase Noise Measurement Application | |
| N9069EM0E | Noise Figure Measurement Application | |
| 89601200C | Basic vector signal analysis and hardware connectivity | |
| 89601301C | Multi-vendor hardware connectivity | |
| 89601AYAC | Digital demodulation analysis | |
| 89601B7NC | 3G modulation analysis | |
| 89601B7RC | Wireless connectivity modulation analysis | |
| 89601BHFC | Custom OFDM modulation analysis | |
| 89601BHGC | LTE/LTE-A FDD modulation analysis | |
| 89601BHHC | LTE/LTE-A TDD modulation analysis | |
| 89601BHMC | DOCSIS modulation analysis | |
| 89601BHNC | 5G NR modulation analysis | |
| 89601BHPC | FMCW radar analysis | |
| 89601BHQC | Pulse analysis | |
| 89601BHTC | IoT modulation analysis | |
| 89601BHXC | High throughput WLAN modulation analysis | |
| N9062EM0E | SCPI Language Compatibility Measurement Application | |
| N9063EM0E | Analog Demodulation Measurement Application | |
| N90EMPSMB | Power Suite Measurement Application | |
| N90EMTDSB | Time Domain Scan | |
| N9038RT1B | Real-time analysis up to maximum available BW, Basic Detection | |
| E9062EM0E | SCPI Language Compatibility Measurement Application | |
| E9063EM0E | Analog Demodulation Measurement Application | |
| E9068EM0E | Phase Noise Measurement Application | |
| E9069EM0E | Noise Figure Measurement Application |
Security Features
| N9038B-SS1 | Additional removable solid state drive, Win10, for PC6S |
Performance Options
| N9038B-PFR | Precision frequency reference |
Preamplifier
| N9038B-P44 | Preamplifier, 44 GHz | |
| N9038B-P08 | Preamplifier, 8.4 GHz | |
| N9038B-P03 | Preamplifier, 3.6 GHz | |
| N9038B-P26 | Preamplifier, 26.5 GHz |
Connectors
| N9038B-C35 | RF input Connector, 3.5 mm, male | |
| N9038B-CNF | RF input Connector, Type-N, female | |
| N9038B-YAS | Y-Axis Screen Video Output | |
| N9038B-CR3 | Connector rear, second IF output |
Frequency range
| N9038B-526 | Frequency range, 3 Hz to 26.5 GHz | |
| N9038B-503 | Frequency range, 3 Hz to 3.6 GHz | |
| N9038B-544 | Frequency range, 3 Hz to 44 GHz | |
| N9038B-508 | Frequency range, 3 Hz to 8.4 GHz |
Bandwidth
| N9038B-B25 | Analysis bandwidth, 25 MHz | |
| N9038B-B85 | Analysis bandwidth, 85 MHz | |
| N9038B-B1X | Analysis bandwidth, 160 MHz |
External Mixing
| N9038B-EXM | External Mixing |
Calibration options
| N9038B-UK6 | Commercial calibration certificate with test data |
Source connectivity
| N9038B-ESC | External source control |
Accessories
| CV1117A | Cover, Front Panel, Phantom Gray for 4U X-Series Signal Analyzers | |
| 1CR014A | Rack Slide Kit for 17-inch and 20-inch Mounting Holes | |
| 1DVR001A | ROM/CD-R/RW drive | |
| 1MSE001A | Mouse |
| N9038SA2E | Signal Analyzer Core Software for N9038B |
