Highlights

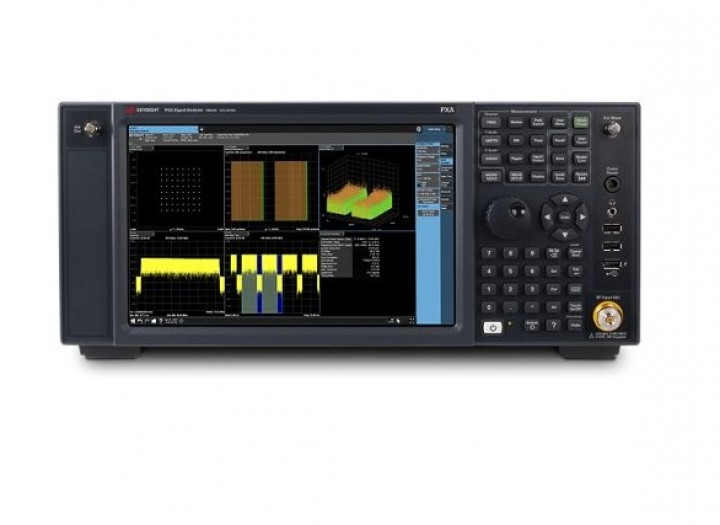

Built to address high-bandwidth applications like 5G carrier aggregation and amplifier test, 802.11ax/be, satellite, radar, and electronic warfare (EW), Keysight’s N9032B PXA X-Series signal analyzer delivers the widest analysis bandwidth in its class. Our measurement software applications help you optimize your most complex designs and stay up to date on the latest requirements. Get the best swept displayed average noise level (DANL), error vector magnitude (EVM) performance, and sensitivity in a compact 4U-high form factor.
- Ready-to-use PathWave X-Series measurement applications and PathWave 89600 vector signal analysis software to ensure standards compliance and more
- Up to 2 GHz bandwidth option available on all models
- Superior spur searching speed with industry-best swept DANL
- Industry-best EVM residuals and sensitivity
- Drop-in replacement for rack-mounted spectrum analyzers and a compact 4U-high form factor
- Order-of-magnitude improvement in accuracy with the U9361 RCal receiver calibrator
Specification
대역폭 옵션:
1, 1.5, and 2 GHz
DANL @1 GHz:
-174 dBm
주파수:
2 Hz to 50 GHz
주파수 선택:
8.4, 13.6, 26.5, 44, 50 GHz, Mixers to 1.1 THz
최대 분석 대역폭:
2 GHz
최대 리얼타임 대역폭:
N/A
성능 레벨:
◆◆◆◆◆◇
위상 노이즈 @1 GHz (10kHz 오프셋):
-136 dBc/Hz
유형:
Benchtop
TOI @1 GHz (3rd Order Intercept):
+22 dBm
Option
Frequency options
| N9032B-508 | Frequency Range, 2 Hz to 8.4 GHz | |
| N9032B-513 | Frequency Range, 2 Hz to 13.6 GHz | |
| N9032B-526 | Frequency Range, 2 Hz to 26.5 GHz |
Preamplifier options
| N9032B-P08 | Preamplifier, 8.4 GHz | |
| N9032B-P13 | Preamplifier, 13.6 GHz | |
| N9032B-P26 | Preamplifier, 26.5 GHz |
Bandwidth options
| N9032B-R15 | Analysis bandwidth, 1.5 GHz | |
| N9032B-R20 | Analysis bandwidth, 2 GHz | |
| N9032B-R10 | Analysis bandwidth, 1 GHz |
Performance Options
| N9032B-EA3 | Electronic attenuator, 3.6 GHz | |
| N9032B-LNP | Low noise path |
Calibration Options
| N9032B-UK6 | Commercial calibration certificate with test data |
Connector Options
| N9032B-ALV | Auxiliary log video output | |
| N9032B-C35 | RF input Connector, 3.5 mm, male | |
| N9032B-CR3 | Connector rear, second IF output | |
| N9032B-CRP | Connector rear, programmable IF output | |
| N9032B-YAV | Screen video, log video and linear video |
External Mixing
| N9032B-EXM | External mixing |
Security - PC Features
| N9032B-SF1 | Security features, exclude launching programs | |
| N9032B-SF2 | Security features, prohibit saving results | |
| N9032B-SS2 | Additional Solid state drive, Win10, for PC8 |
Source Connectivity
| N9032B-ESC | External source control |
Accessories
| 1CM113A | Rack mount flange kit 177.0mm H (4U) - two flange brackets - New Phantom Gray Color | |
| CV1117A | Cover, Front Panel, Phantom Gray for 4U X-Series Signal Analyzers |
| N9032SA2E | Signal Analyzer Core Software for N9032B |
Application Software with Subscription
| N6141EM0E | EMI Measurement Application | |
| N9061EM0E | Remote Language Compatibility Measurement Application | |
| N9062EM0E | SCPI Language Compatibility Measurement Application | |
| N9063EM0E | Analog Demodulation Measurement Application | |
| N9067EM0E | Pulse Analysis Measurement Application | |
| N9068EM0E | Phase Noise Measurement Application | |
| N9069EM0E | Noise Figure Measurement Application | |
| N9071EM0E | GSM/EDGE/Evo Measurement Application | |
| N9073EM0E | W-CDMA/HSPA+ Measurement Application | |
| N9077EM0E | WLAN 802.11a/b/g/j/p/n/af/ah Measurement Application | |
| N9077EM1E | WLAN 802.11ac/ax Measurement Application | |
| N9080EM0E | LTE and LTE-Advanced FDD Measurement Application | |
| N9080EM3E | NB-IoT and eMTC FDD Measurement Application | |
| N9082EM0E | LTE and LTE-Advanced TDD Measurement Application | |
| N9084EM0E | Short Range Communications and IoT Measurement Application | |
| N9085EM0E | 5G NR Measurement Application | |
| N6171A | MATLAB Software | |
| N9054EM0E | Vector Modulation Analysis Digital Demodulation Measurement Application | |
| N9054EM1E | Vector Modulation Analysis Custom OFDM Application | |
| N9081EM0E | Bluetooth (TM) Measurement Application | |
| N9080EM4E | LTE V2X measurement application | |
| N9072EM0E | cdma2000 measurement application, remote control only | |
| N9076EM0E | 1xEV-DO measurement application, remote control only | |
| N9079EM0E | TD-Scdma/HSPA measurement application, remote control only | |
| 89601301C | Multi-vendor hardware connectivity | |
| 89601AYAC | Digital demodulation analysis | |
| 89601B7NC | 3G modulation analysis | |
| 89601200C | Basic vector signal analysis and hardware connectivity | |
| N90EMEDPB | Enhance Display Package | |
| 89601B7RC | Wireless connectivity modulation analysis | |
| N90EMEMCB | Basic EMC Functionality | |
| N90EMTDSB | Time Domain Scan | |
| 89601BHFC | Custom OFDM modulation analysis | |
| 89601BHGC | LTE/LTE-A FDD modulation analysis | |
| 89601BHHC | LTE/LTE-A TDD modulation analysis | |
| 89601BHNC | 5G NR modulation analysis | |
| 89601BHPC | FMCW radar analysis | |
| N90EMFP2B | Fast power | |
| 89601BHQC | Pulse analysis | |
| 89601BHTC | IoT modulation analysis | |
| 89601BHXC | High throughput WLAN modulation analysis | |
| N90EMPSMB | Power Suite Measurement Application | |
| N9055EM0E | Power Amplifier Measurement Application | |
| 89601PSMC | Power Suite Measurement | |
| N9077EM2E | WLAN 802.11be Measurement Application | |
| N9085EM4E | NR V2X Measurement Application | |
| 89601BHMC | DOCSIS modulation analysis |
