Highlights
Outperform Expectations in Your Essential RF Applications

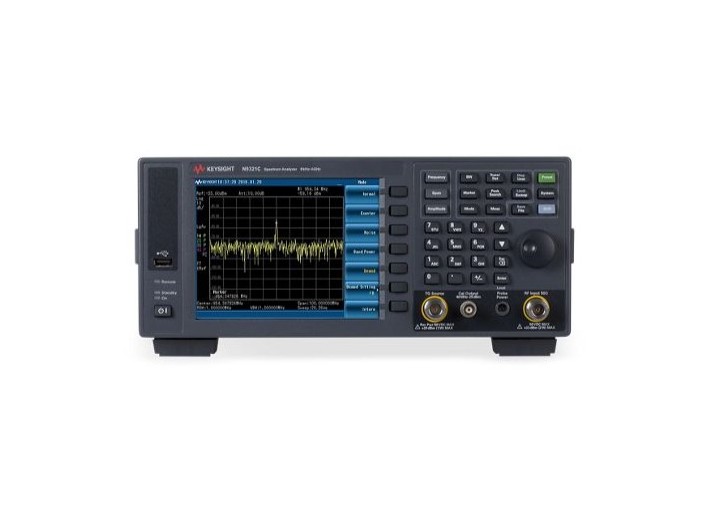

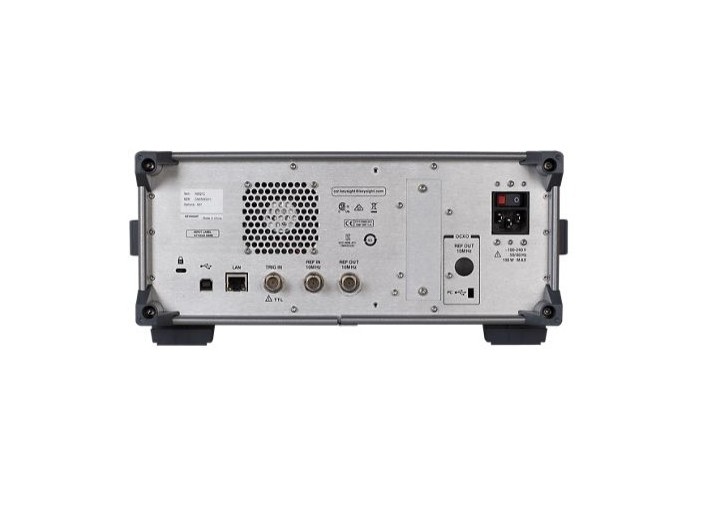

Built to address your essential applications, the N9321C Basic Spectrum Analyzer (BSA) offers proven test efficiency, best-in-class usability, and flexibility to adapt to new requirements.
- Provides fast RF spectrum analysis from 9 kHz to 4 GHz
- Comes equipped with a tracking generator and built-in VSWR bridge for transmission and reflection tests
- Identifies interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature
- Supports AM / FM, ASK / FSK demodulation analysis suites for Internet of Things transmitter characterization
- Enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature
- Provides straightforward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys
Specification
DANL @1 GHz:
-152 dBm
주파수:
9 kHz to 4 GHz
주파수 선택:
9 kHz to 4 GHz
최대 분석 대역폭:
1 MHz
전체 진폭 정확도:
±0.6 dB
성능 레벨:
◆◇◇◇◇◇
위상 노이즈 @1 GHz (10kHz 오프셋):
-90 dBc/Hz
기본 감쇠기 스텝:
1 dB
TOI @1 GHz (3rd Order Intercept):
+15 dBm
트리거링:
RF Burst
External
Video
유형:
Benchtop
Option
Accessories
| Y1820A | Hard transit case | |
| Y1821A | Rack mount kit | |
| Y1822A | Rack mount kit with handle |
