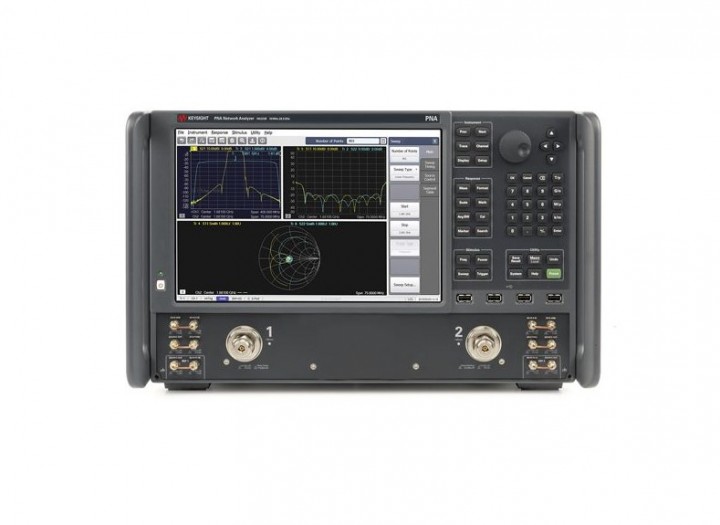

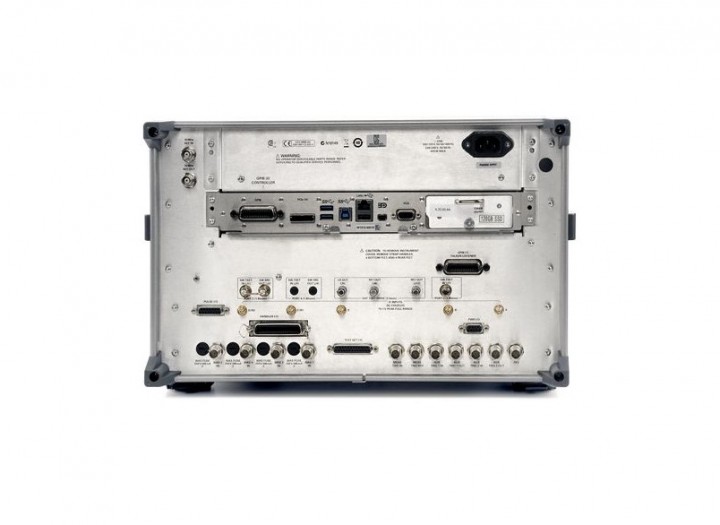

네트워크분석기 N5222B PNA 마이크로파 네트워크 분석기, 900 Hz / 10 MHz ~ 26.5 GHz

Detail view

포함 내역:

Specification

내장 포트 수 : 2 or 4 ports

동적 범위 : 134 dB @20 GHz

최대 출력 전력 : +13 dBm @20 GHz

최대 주파수 : 26.5 GHz

트레이스 노이즈 : 0.002 dB rms @20 GHz (IFBW=1 kHz)

Option

S93222B PNA Core Software to 26.5 GHz

N5222B-200	2-port, base hardware configuration
N5222B-201	2-port, with configurable test set, reference mixer switch
N5222B-205	2-port with configurable test set, ref mixer switch, bias tees, low frequency extension
N5222B-210	2-port with metrology configuration
N5222B-217	2-port with configurable test set, reference mixer switch, source and receiver attenuators
N5222B-219	2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees
N5222B-220	2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension
N5222B-400	4-port with second source
N5222B-401	4-port with second source, configurable test set, reference mixer switch
N5222B-405	4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension
N5222B-410	4-port with second source, metrology configuration
N5222B-417	4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators
N5222B-419	4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees
N5222B-420	4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension

N5222B-1A7	Calibration + Uncertainties + Guardbanding (Not Accredited)
N5222B-A6J	ANSI Z540-1-1994 Calibration
N5222B-UK6	Commercial calibration certificate with test data

N5222B-020	Add IF inputs
N5222B-021	Add pulse modulator to internal 1st source
N5222B-022	Add pulse modulator to internal 2nd source
N5222B-UNY	Enhanced low phase noise performance

S93007B	Automatic fixture removal
S93010B	Time-domain analysis
S93011B	Enhanced time domain analysis with TDR
S93015B	Real-time S-parameter and power measurement uncertainty
S93025B	Basic pulsed-RF measurements
S93026B	Advanced pulsed-RF measurements
S93029B	Noise figure measurements with vector correction
S93080B	Frequency-offset measurements
S93082B	Scalar mixer/converter measurements
S93083B	Vector and scalar mixer/converter measurements
S93084B	Embedded-LO capability
S93086B	Gain-compression measurements
S93087B	Intermodulation distortion measurements
S93088B	Source phase control
S93089B	Differential and I/Q device measurements
S930900B	Spectrum analysis up to 8.5 GHz
S930901B	Spectrum analysis up to 13.5 GHz
S930902B	Spectrum analysis up to 26.5 GHz
S930909B	Spectrum analysis up to 90 GHz
S93093B	Spectrum analysis to 120 GHz
S93094B	Spectrum analysis beyond 120 GHz
S93118B	Fast CW measurements
S93460B	True-mode stimulus
S93551B	N-port measurements
S93898B	Built-in performance test software
S930317B	Phase noise measurement up to 70 GHz
S930321B	Phase noise measurement up to 125 GHz
S94601B	Device measurement eXpert - DMX
S94602B	Limit assistant
S930700B	Modulation distortion up to 8.5 GHz
S930701B	Modulation distortion up to 13.5 GHz
S930702B	Modulation distortion up to 26.5 GHz

N5222B-1CM	Rack mount kit for installation without handles
N5222B-1CP	Rack mount kit for installation with handles
N1966A	Pulse/IO Adapter
N6171A	MATLAB Software
N5222B-SSD	Additional removable solid state drive
