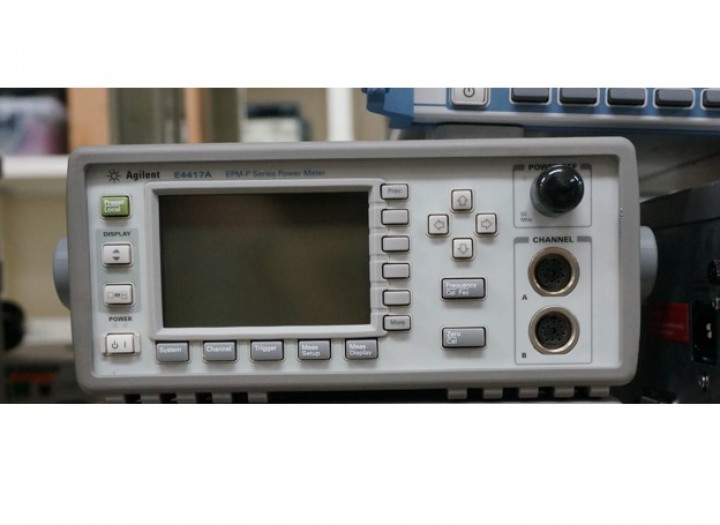

RF파워미터센서 E4417A EPM-P 시리즈 듀얼 채널 전력계
| 제조사 | KEYSIGHT (AGILENT) |
|---|---|
| 채널 수 | 2 |
| Compatible Power Sensors / Power Meters | • 8480 Series • E4410A Series • E9300 Series • E9320 Series |
| 커넥터 유형 | Several connector types are available, power sensors dependent |
| 주파수 범위 | • N8480 Sensors 100kHz to 50 GHz • 8480 Sensors 10 MHz to 50 GHz • Q/R/V/W8486A Sensors 26.5 GHz to 110 GHz • E441XA CW Sensors 10 MHz to 33 GHz • E9300 Sensors 9 kHz to 24 GHz • E9320 Sensors 50 MHz to 18 GHz |
| 기능 | measure peak, average and time-gated power |
목록으로 제품구입상담 렌탈상담하기
데이타시트
본문
Detail view
E4417A 듀얼 채널 EPM-P 시리즈 전력계는 E9320 피크 및 평균 전력 센서를 사용한 피크, 평균, 피크-평균 비율, 타임 게이트 전력 측정이 가능하도록 설계되었습니다.
- 넓은 대역폭 신호에 대한 신뢰할 수 있는 연속 및 싱글샷 측정을 위한 초당 20 M 샘플의 샘플링 레이트
- 타임 게이트 및 프리 런 파워 측정
- '라이브러리'에 완벽한 펄스 및 통계 분석을 위한 무료 'Analyzer Software' 소프트웨어 제공
- 8개의 사전 정의 무선 구성(GSM, EDGE, NADC, iDEN, Bluetooth, IS-95 CDMA, W-CDMA, cdma2000)
Specification
채널 수 : 2
Compatible Power Sensors / Power Meters : • 8480 Series • E4410A Series • E9300 Series • E9320 Series
커넥터 유형 : Several connector types are available, power sensors dependent
주파수 범위 : • N8480 Sensors 100kHz to 50 GHz • 8480 Sensors 10 MHz to 50 GHz • Q/R/V/W8486A Sensors 26.5 GHz to 110 GHz
• E441XA CW Sensors 10 MHz to 33 GHz • E9300 Sensors 9 kHz to 24 GHz • E9320 Sensors 50 MHz to 18 GHz
기능 : measure peak, average and time-gated power
Option
Connectors
| E4417A-002 | Parallel rear panel sensor input connectors and front panel reference calibrator connector | |
| E4417A-003 | Parallel rear panel sensor input connectors and rear panel reference calibrator connector |
Calibration Documentation
| E4417A-1A7 | Calibration + Uncertainties + Guardbanding (Not Accredited) | |
| E4417A-A6J | ANSI Z540-1-1994 Calibration |
Custom Solution - Assembled
| E4417A-E02 | Bundle of a E4417A and two E9327A | |
| E4417A-E01 | Bundle of a E4417A, two E4413A and transit case |
Additional Documentation
| E4417A-0B3 | English language service manual, printed | |
| E4417A-0BK | English language user and programming guide, printed | |
| E4417A-0BF | English language programming guide | |
| E4417A-0B1 | English language user and installation guide; printed |
Cables
| E4417A-004 | Delete power sensor cable | |
| E4417A-005 | Include power sensor cable, E9288A length 5-ft (1.5m) |
Additional Cables
| E9288B | Sensor cable 3m/10ft (E9288B) | |
| E9288C | Sensor cable 10m/31ft (E9288C) | |
| E9288A | Sensor cable 1.5m/5ft (E9288A), Volt: 30 VRMS |
Accessories
| E4417A-908 | Rackmount kit (one Instrument) | |
| E4417A-909 | Rackmount kit (two instruments) | |
| 34161A | Accessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc. | |
| 34131A | Transit case for half-rack 2U high instruments (e.g., 34401A) |
Additional Optical Disk
| E4416A-CD1 | Documentation Optical Disk |
